Jazz Wall Hung Pan (including Soft Close Seat)

Name: Jazz Wall Hung Pan (including Soft Close Seat)
Brand: PARISI
SKU: ACJZ01
Price: 1875.00 AUD
Availability: InStock

Jazz Wall Hung Pan (including Soft Close Seat)

$1,875.00

Item:ACJZ01

Quantity

Compare

Enquiry

Size

Colour

Product Information

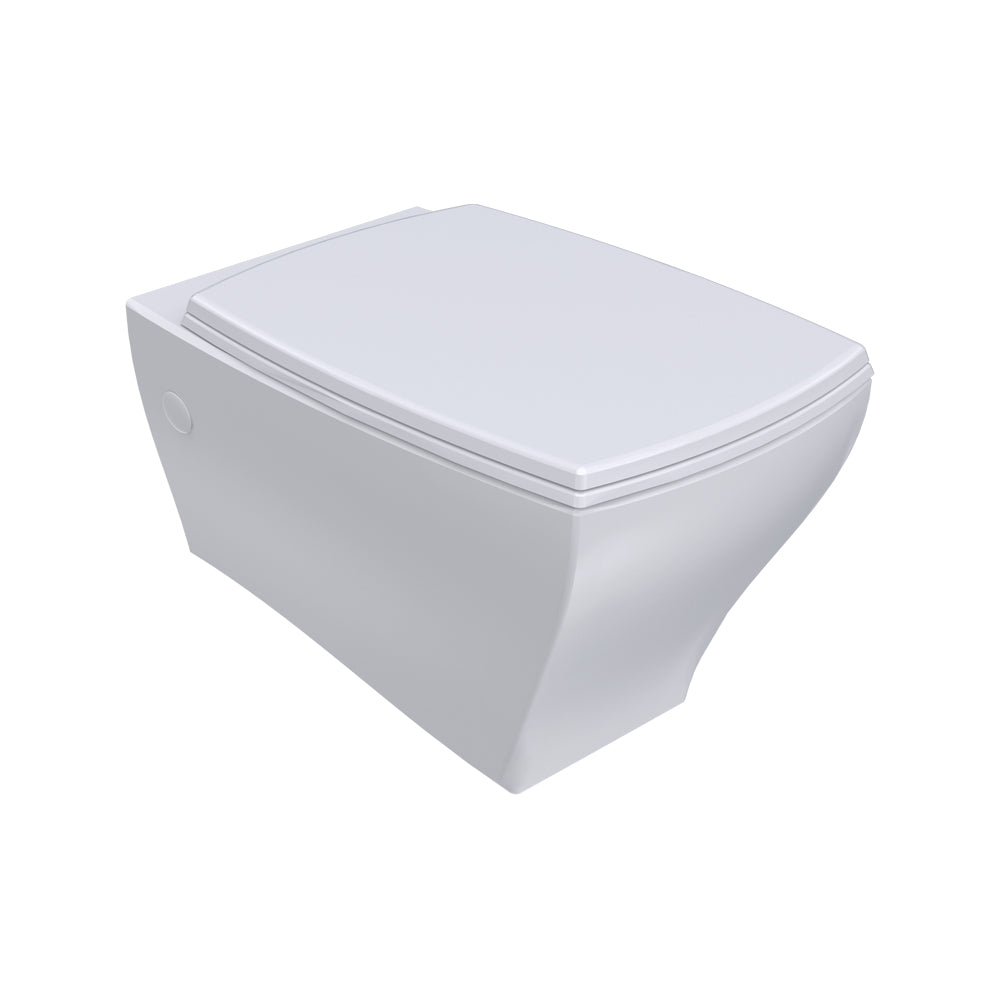

The Jazz Wall Hung Pan White provides a union of the traditional and the contemporary, indulging in soft femininity. Jazz invokes a feeling of calm sophistication as well as great sense of luxury.

Files and Downloads

Specification Sheet

CAD Files

.DWG (CAD)

.3DS (CAD)

Specifications

Product Type:

Toilets

Brand:

Art Ceram

Collection:

Jazz

Range:

Design

Designers:

Meneghello Paolelli Associati

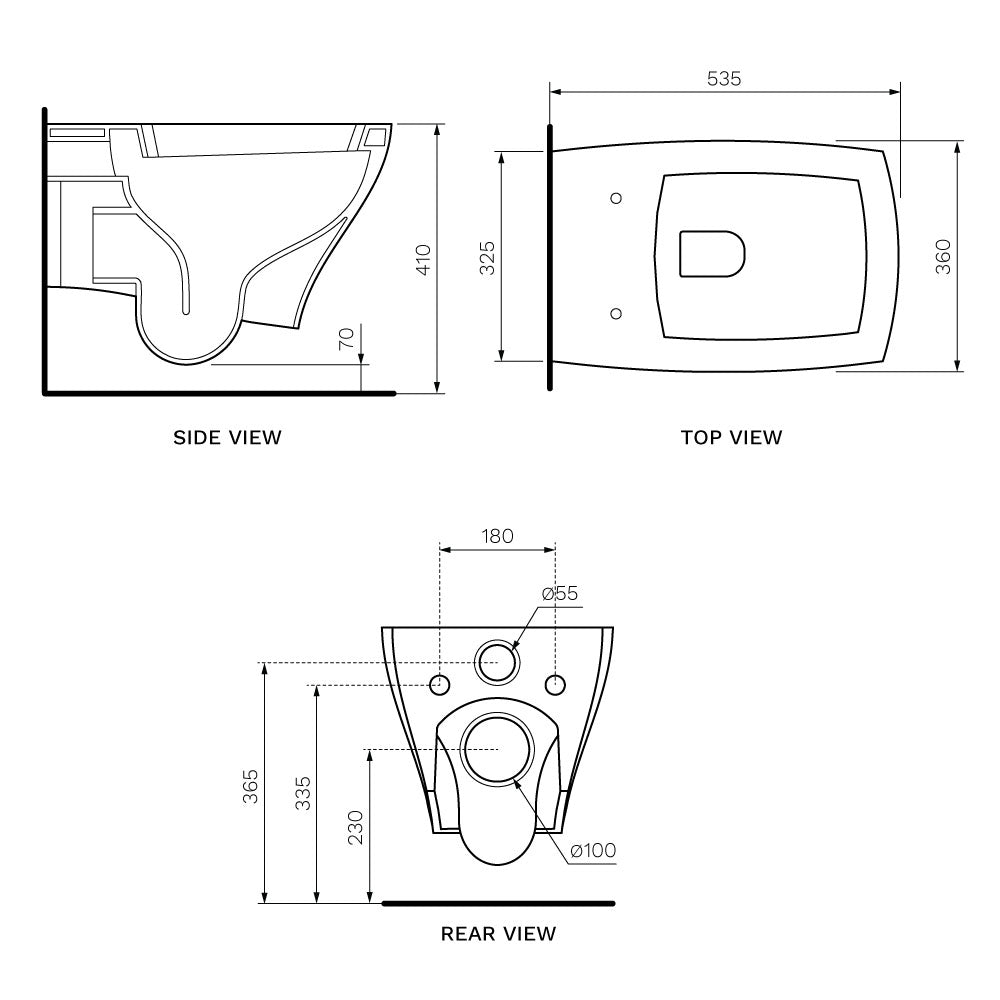

Width (mm):

360

Depth (mm):

535

Height (mm):

340

Colour/Finish:

Gloss White

Material:

Ceramic

WELS:

4 Star 4.5/3L

Average water flush (L/f):

3.3 Litres

Trap options:

P-Trap

P Trap set out (mm):

230mm height FFL

Inlet Options:

Back Inlet 365mm height FFL

Seat:

Soft Close - Heavy Grade (ACJZ07)

Rimless:

Features

Origin:

Made In Italy

Warranty:

10 Year Warranty

Availability:

Stocked Item

Fixing Types:

Wall

Features:

Seat - Soft Close, Heavy Grade, Chrome Plated Metal Hinges (ACJZ07).

Installation Instructions:

If the pan is being installed in conjunction with a concealed cistern other than a PARISI model a Kee Seal to suit the 55mm inlet of the pan must be utilised. (PARISI code SP.PA0002).
Compatible with concealed cisterns (PA120, PA121, PA140, PA141). Compatible with push button panels and remote button sets (PA221 - PA265).
